HarmonyOS Next: Building Applications with Different Package Names Using Multi-Target Products in One Project

In daily development, manually switching signature files and package names when dealing with multi-signature and multi-product build outputs is error-prone and time-consuming.

Introduction

In daily development, manually switching signature files and package names when dealing with multi-signature and multi-product build outputs is error-prone and time-consuming. HarmonyOS provides custom hvigor plugins and multi-target product building capabilities. We can use hvigor plugins to dynamically modify project configurations, ensuring that a single codebase can switch between different package names while maintaining core functionality. This allows us to generate customized build products through multi-target product building.

I. Understanding Multi-Target Product Building

1. What is Multi-Target Product Building?

Simply put, multi-target products refer to highly customized output modules. Developers can build different HAP, HAR, HSP, APP, etc., by defining different build configurations to achieve differentiation between products. For detailed customization options, see: https://developer.huawei.com/consumer/cn/doc/best-practices/bpta-multi-target#section19846433183815

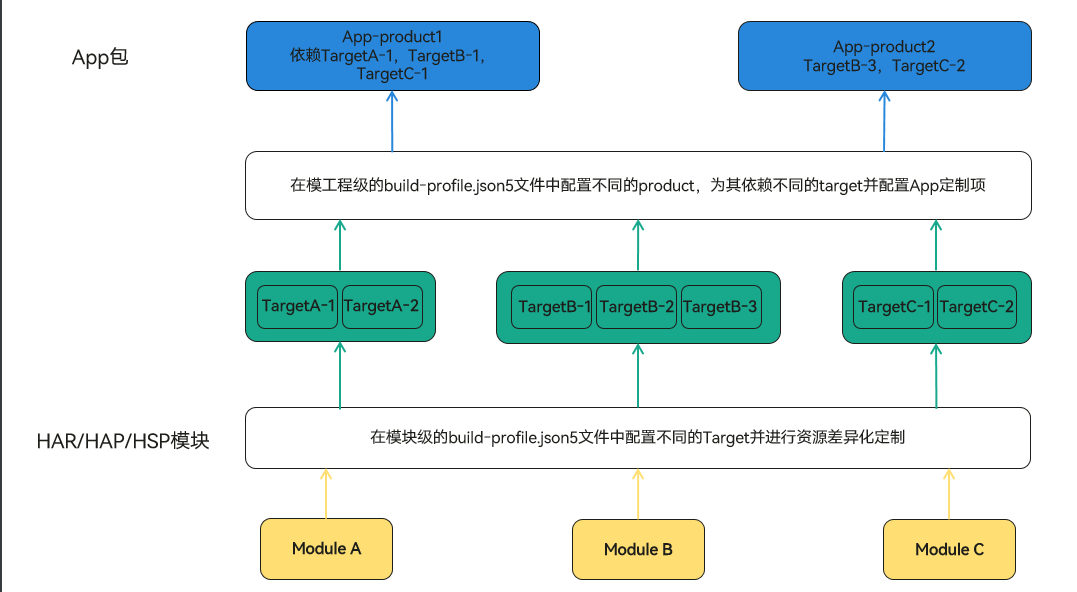

2. Build Schematic Diagram

II. Implementing Multi-Target Product Building in a Project

(Source code reference branch: feature/multiTargetProduct)

1. Configuring Multi-Target Product Building

Multi-target product building requires modifying configuration files like build-profile.json5 and module.json5 to define different product and target entries. Developers can specify device types, source sets, resources, and assign different targets to products. The build tool generates targets based on these configurations and combines them into customized products.

Configure Signing Configs for Different Projects:

Define default, demo_debug, and demo_release signing configurations for debugging and release builds:

"signingConfigs": [
  {
    "name": "default", // Default certificate
    "type": "HarmonyOS",
    "material": { /* ... default certificate details ... */ }
  },
  {
    "name": "demo_debug", // Debugging certificate
    "type": "HarmonyOS",
    "material": { /* ... debug certificate details ... */ }
  },
  {
    "name": "demo_release", // Release certificate
    "type": "HarmonyOS",
    "material": { /* ... release certificate details ... */ }
  }
]

Define Products with Different Signing Configs:

Each product uses a specific signing configuration to generate differentiation outputs:

"products": [
  {
    "name": "default",
    "signingConfig": "default", // Default product uses default certificate
    "compatibleSdkVersion": "5.0.1(13)",
    "runtimeOS": "HarmonyOS",
    "buildOption": { /* ... build options ... */ }
  },
  {
    "name": "products_debug",
    "signingConfig": "demo_debug", // Debug product uses debug certificate
    "compatibleSdkVersion": "5.0.1(13)",
    "runtimeOS": "HarmonyOS",
    "buildOption": { /* ... build options ... */ }
  },
  {
    "name": "products_release",
    "signingConfig": "demo_release", // Release product uses release certificate
    "compatibleSdkVersion": "5.0.1(13)",
    "runtimeOS": "HarmonyOS",
    "buildOption": { /* ... build options ... */ }
  }
]

Link Products to Targets in HAP/HSP Modules:

Configure targets in modules to associate products with build outputs:

"modules": [
  {
    "name": "entry",
    "srcPath": "./entry",
    "targets": [
      {
        "name": "default",
        "applyToProducts": [
          "default",
          "products_debug",
          "products_release"
        ]
      }
    ]
  }
]

2. Switching Product Configurations and Output Packages

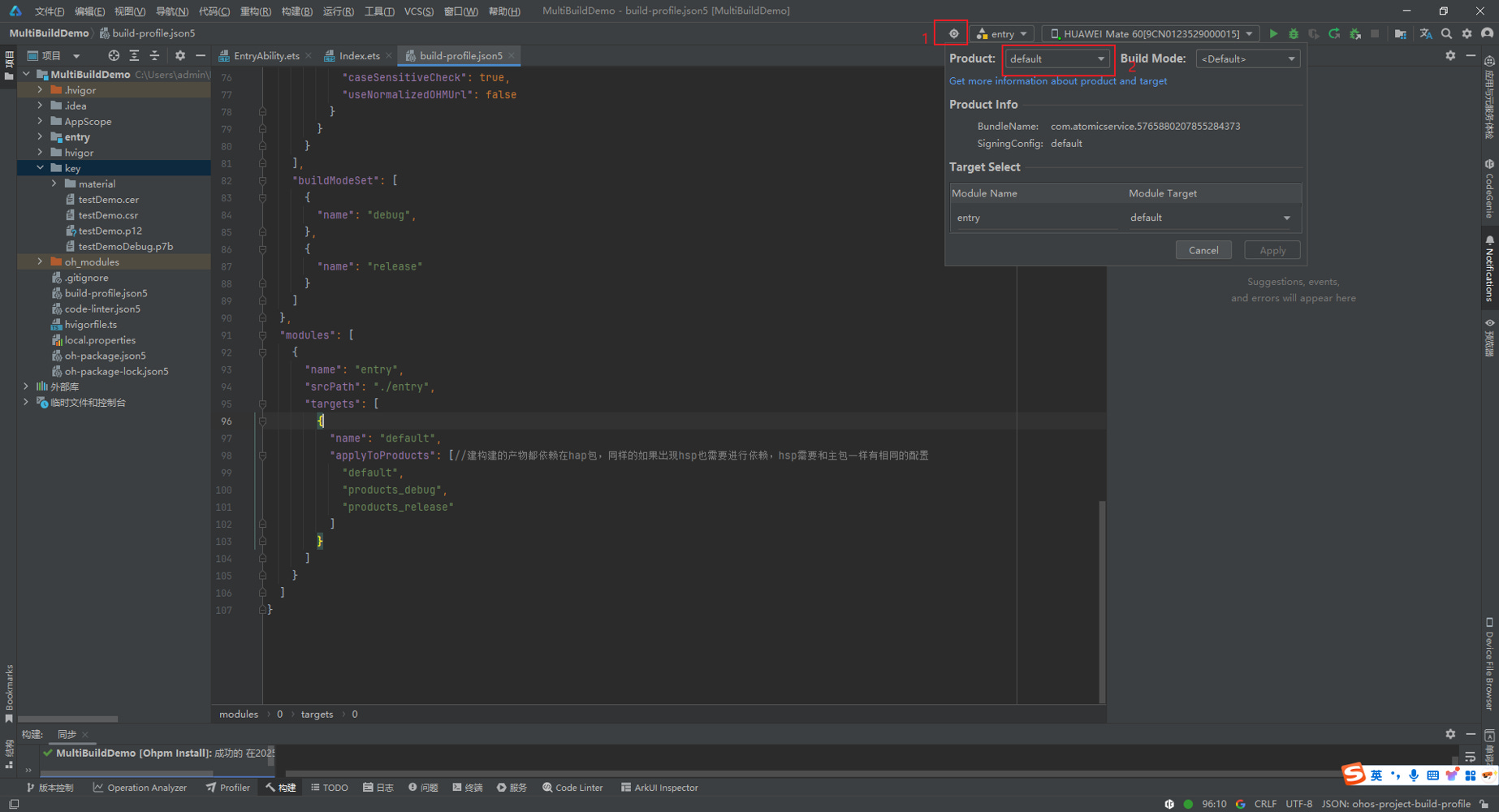

Manual Switching Interface:

III. Building Different Package Names and Configurations on Multi-Target Products

(Source code reference branch: feature/differentPackageConfigurations)

1. Adding Signing and Product Configs for a Second App

New Signing Configuration for Second App:

"signingConfigs": [
  // ... existing configs ...
  {
    "name": "demo_debug_test2", // Signing for the second app
    "type": "HarmonyOS",
    "material": { /* ... testDemo2 certificate details ... */ }
  }
]

Define a New Product with Unique Identifiers:

Configure label, icon, bundleName, and output for differentiation. Use buildProfileFields for custom parameters:

"products": [
  // ... existing products ...
  {
    "name": "products_debug_test2",
    "signingConfig": "demo_debug_test2",
    "compatibleSdkVersion": "5.0.1(13)",
    "runtimeOS": "HarmonyOS",
    "label": "$string:app_name_test2", // Second app's name
    "icon": "$media:app_icon_test2", // Second app's icon
    "bundleName": "com.atomicservice.6917571239128090930", // Second app's package name
    "buildOption": { /* ... build options ... */ },
    "output": { "artifactName": "products_debug_test2" } // Unique output directory
  }
]

2. Implementation Results After Configuration

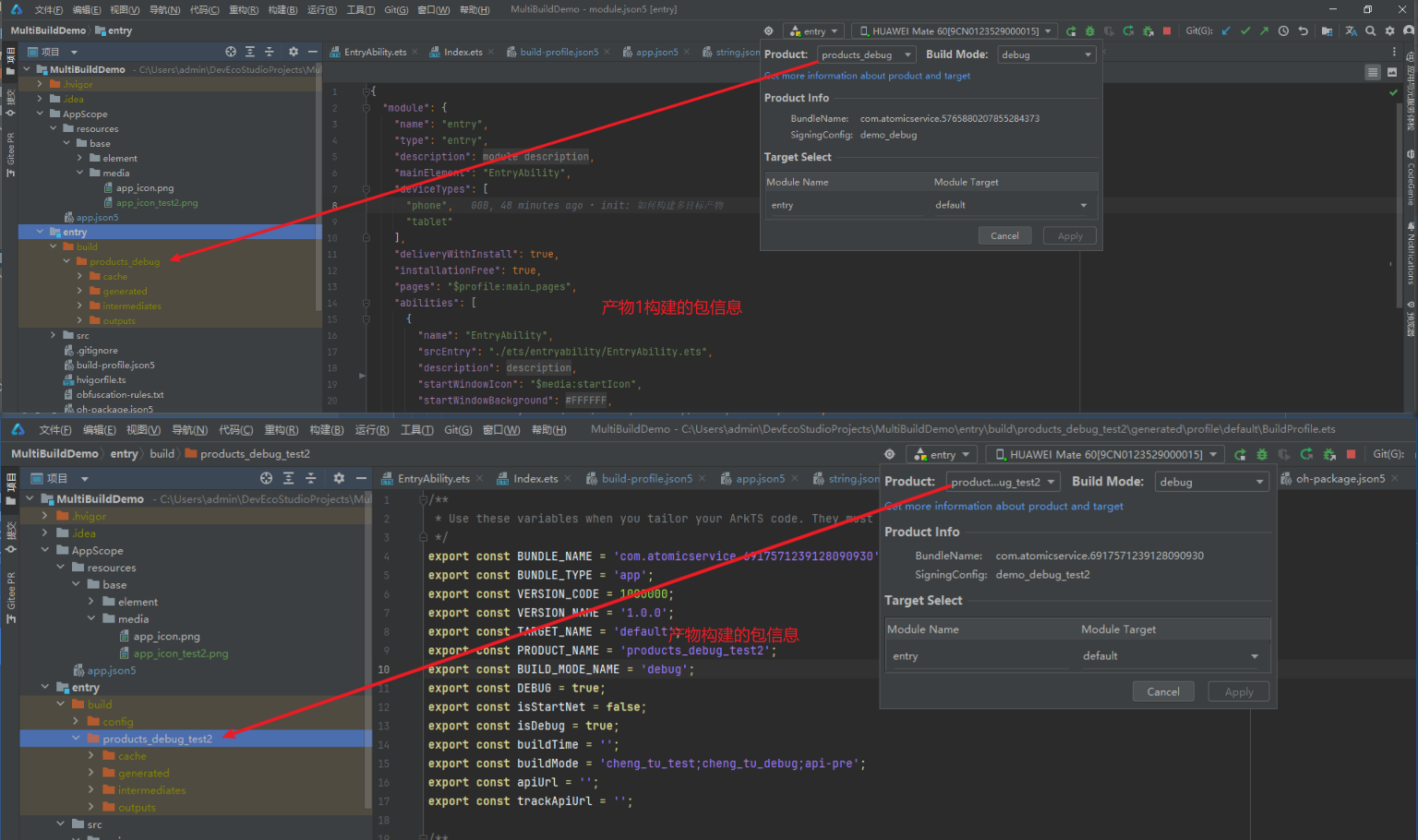

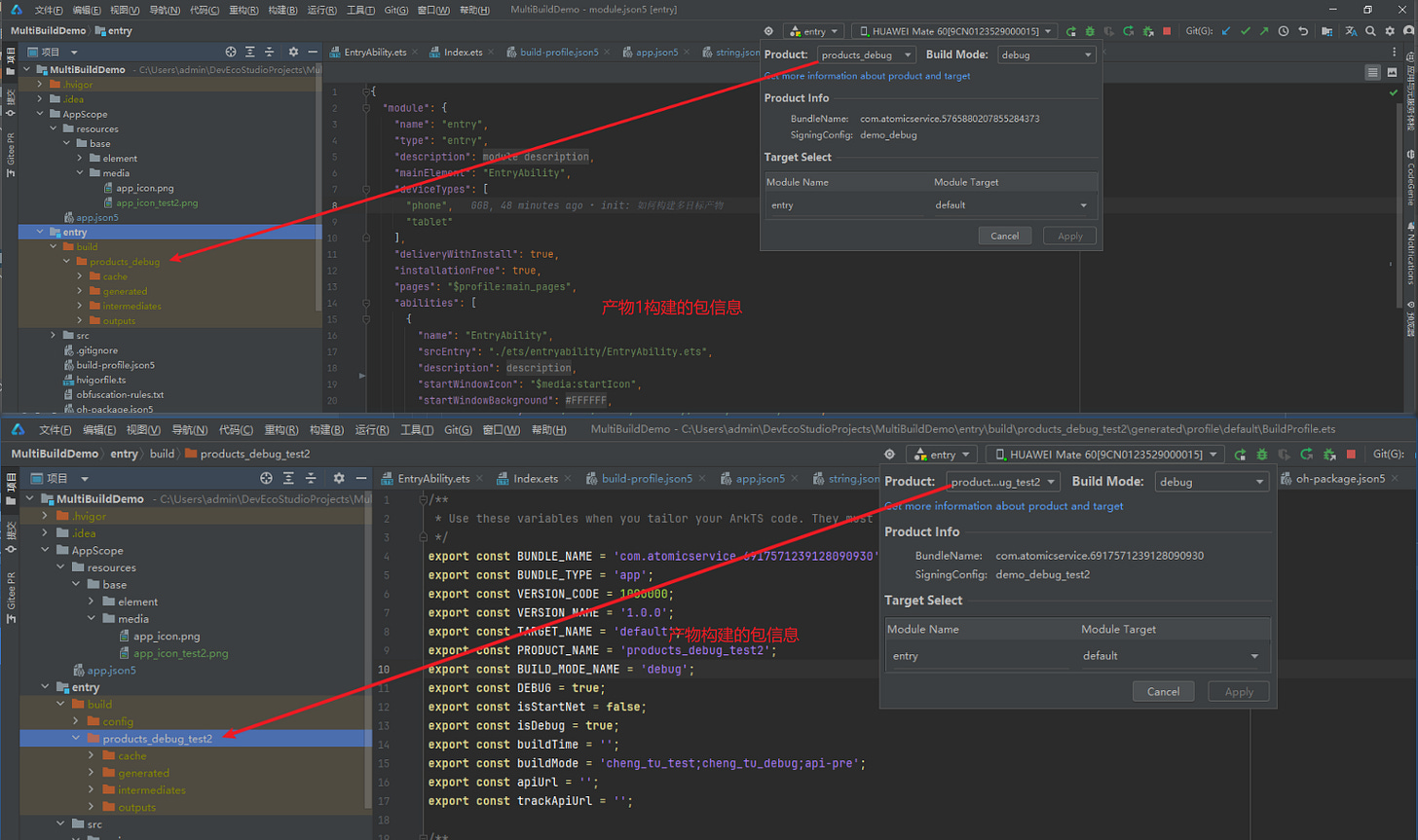

Output Product Information:

Desktop icon and application name after it takes effect:

3. Querying and Using Custom Constants

Use buildProfileFields to define product-specific parameters for code differentiation.

Configure Custom Constants in Products:

"products": [
  {
    "name": "default",
    "buildOption": {
      "arkOptions": {
        "buildProfileFields": {
          "isStartNet": false,
          "isDebug": true,
          "productsName": "default"
          // ... other custom parameters ...
        }
      }
    }
  },
  // ... repeat for other products with unique values ...
]

Access Custom Configs in Code:

Import BuildProfile and use parameters in UI:

import BuildProfile from 'BuildProfile';
Column() {
  Text(`productsName:${BuildProfile.productsName}`)
  // ... other Text components for custom fields ...
}

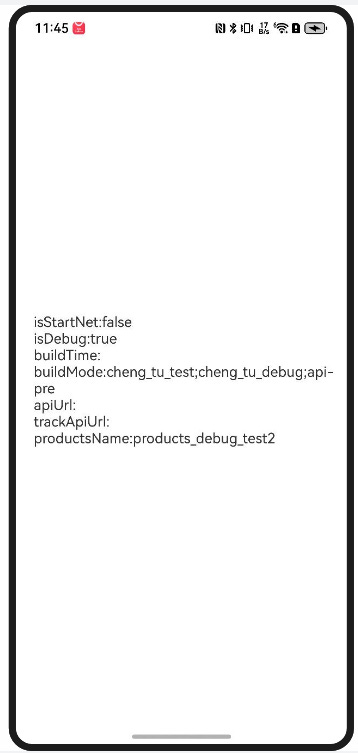

UI Display of Custom Parameters:

IV. Conclusion

Multi-target product building allows rapid switching between different build configurations and solves package name differentiation for scenarios like multi-entity app submissions (e.g., domestic vs. foreign entities on AG). While this covers basic customization, advanced needs (e.g., dynamic client_id/app_id in module.json5) require integration with hvigor plugins. Future articles will explore using custom scripts to modify hard-coded configurations during builds.

VI. Source Code Repository

Repository Address

VII. Reference Materials

Multi-Target Product Building Practice - Huawei HarmonyOS Developers
HarmonyOS Multi-Environment Building Guide - Juejin
